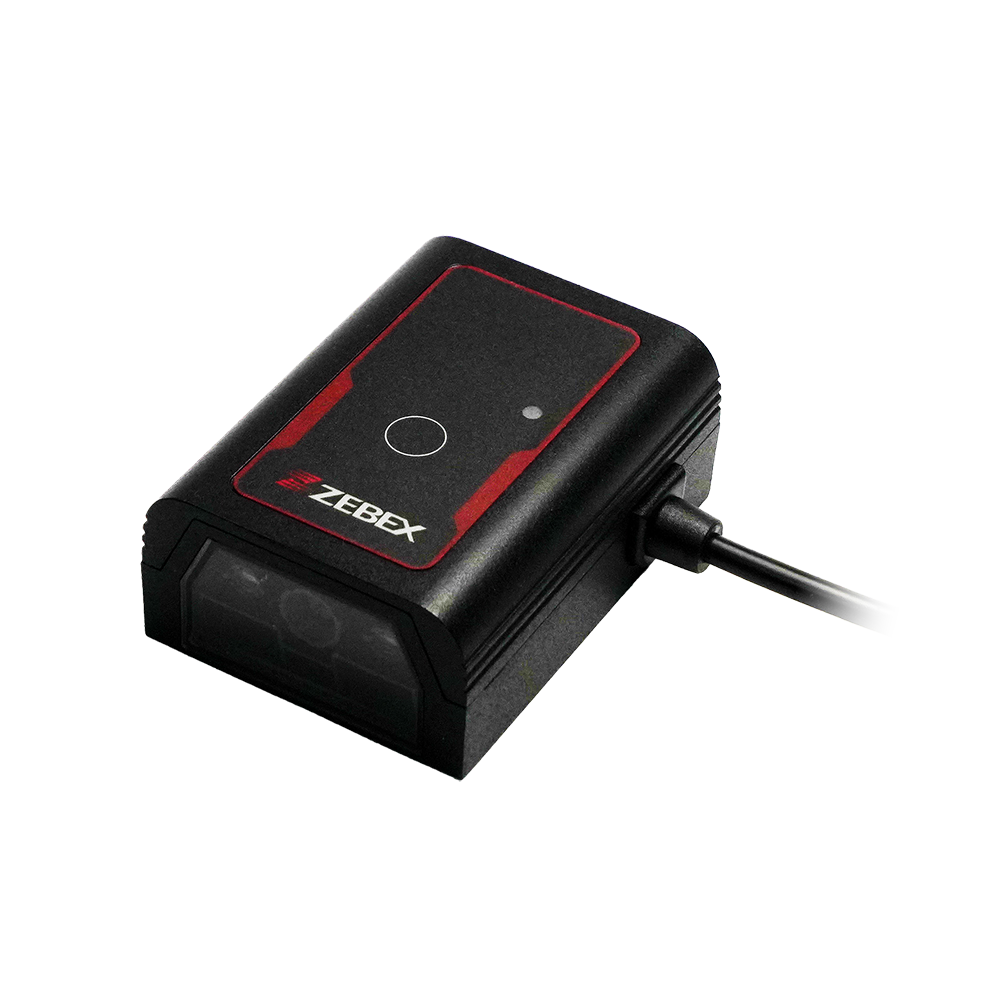

Z-5552 Plus

Z-5552 Plus provides dependable performance in a sleek, durable design. At its core is a cutting-edge 2D engine that ensures every scan is lightning-fast and accurate, even with poorly printed or damaged barcodes. Built for versatility, it reads barcodes on everything from traditional labels to smartphone screens, adapting seamlessly to modern workflows. Its durable metal housing not only enhances the scanner's premium feel but also improves heat dissipation for sustained, reliable use. With features like a full-flat scanning window for effortless cleaning and an IP54-rated design for water and dust resistance, the Z-5552 Plus is made to handle demanding environments. Whether you're in healthcare, retail, banking, or smartphone applications, this scanner is crafted to exceed your expectations.
• Unmatched motion tolerance for fast scanning
• Blazing-fast decoding of 1D and 2D codes
• Reads barcodes from screens with ease

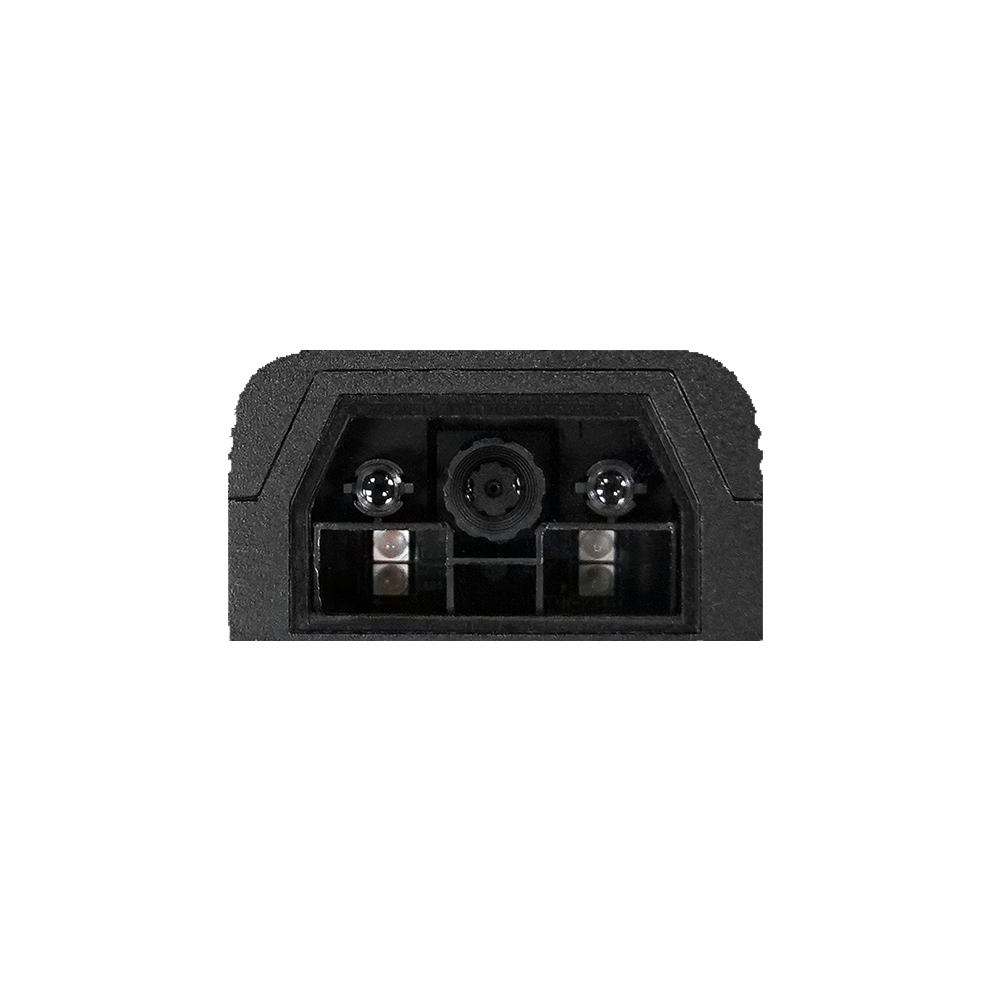

• Full-flat window for easy cleaning
• IP54-rated water and dust protection
• Healthcare-ready with GS1 and FMD support

Specifications

OPERATIONAL

Illumination Element

617 nm LED

Light Source

617 nm LED

Depth of Field

Code39 ( 5 mil ): 65 – 115 mm
EAN 13 ( 13 mil ): 40 – 250 mm
(Note: DOF may vary depending on environment condition and barcode quality.)

Min. Bar Width

4 mils ( Code39 )

Scan Angle

44.4° H x 29.1° V

Sensitivity

360° ( omnidirectional rotational sensitivity )

Print Contrast

30% @ UPC/EAN 100%

Indicator

Two-color LED ( blue, red )

Programmable Operation

Scan mode, Beeper tone

System Interface

RS-232, USB

PHYSICAL CHARACTERISTICS

Dimensions H x W x L

64.2 x 47 x 25.7 mm ( device only )

Weight (g)

145 g

Cable

Standard 2M straight

POWER

Input Voltage

5 VDC ± 10%

Operating Current

230 mA @ 5V ( Typical )

REGULATORY

EMC

CE & FCC DOC compliant; VCCI; BSMI

Safety

IEC 62471

ENVIRONMENT & SAFETY

Operating Temperature

-20°C ~ 50°C ( -4°F ~ 122°F )

Storage Temperature

-20°C ~ 60°C ( -4°F ~ 140°F )

Humidity

5% ~ 95% RH ( non-condensing )

Light Level

Max. 100,000 Lux

DECODING CAPABILITY

1D Barcode

UPC/EAN (UPCA/UPCE/ EAN-8/ EAN-13, ISBN (Bookland), ISSN), Code 39 (Standard, Full ASCII, Trioptic, Code 32 (Italian Pharmacode), Code 128, Code 93, Codabar, 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA, Chinese 2 of 5, Matrix 2 of 5, Code 11), MSI Plessey, GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked)

2D Barcode

PDF417, MicroPDF417, Composite Codes (CC-A, CC-B, Aztec (Standard, Inverse), Maxicode, Data Matrix/ ECC 200(Standard, Inverse), QR Code (Standard, Inverse, Micro)
