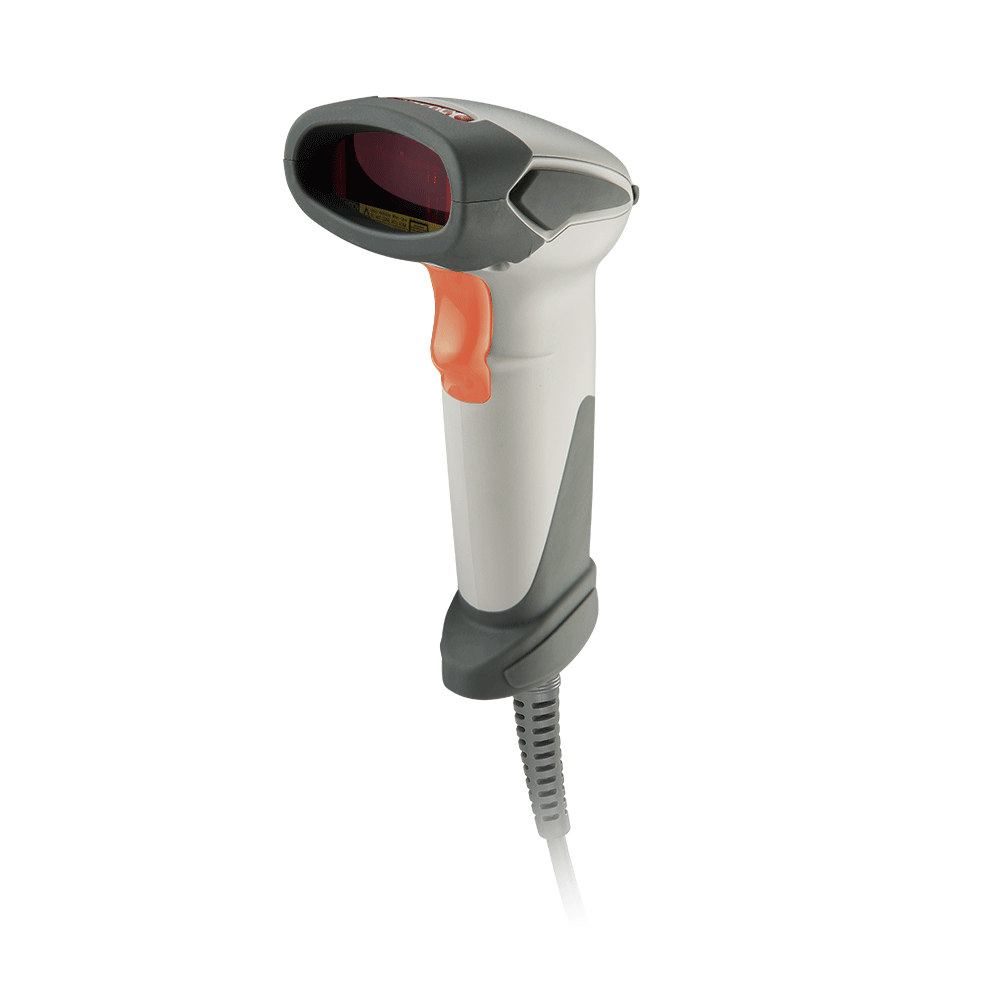

Z-3191LE

Laser Gun Type Handheld Scanner

Z-3191LE Laser Gun Type Handheld Scanner
Z-3191LE Laser Gun Type Handheld Scanner
Z-3191LE Laser Gun Type Handheld Scanner
Z-3191LE Laser Gun Type Handheld Scanner
Z-3191LE Laser Gun Type Handheld Scanner
Defy harsh environment with the new gun-type laser scanner.
Featuring elastic rubber protection and durable large size trigger users can operate the scanner with comfort and protection, even during prolonged periods of use. Embedded with ZEBEX’ most advanced decoding technology, Z-3191LE decodes at 100 scans per second and is able to recognize most of the 1D barcodes on the market including GS1 DataBar.
Reliable and proven to maintain performance through cruel conditions, it is designed for users requiring sharp scanning performance and industrious applications.

• 32-bit proprietary Ultrascan decoding technology
• GS1 DataBar decoding capability
• Auto Gain Control
• Synthetic rubber handle for operation comfort and durability

Specifications

Light Source
650 nm visible laser diode (VLD)
Optical System
Laser
Microprocessor
32-bit
Depth of Field
4 mil: 0 –10 mm
5 mil: 20 – 80 mm
7.5 mil: 10 – 200 mm
10 mil: 10 – 230 mm
13 mil: 30 – 250 mm
20 mil: 50 – 380 mm
Note: DOF may vary depending on environment condition and barcode quality.
Scan Angle
38°
Scan Rate
100 scans per second
Print Contrast
45% @ UPC/EAN 100%
Indicator
Beeper and LED
System Interface
Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS
Dimensions H x W x L
147.0 × 62.0 x 114.5 mm (device only)
Weight (g)
140 g (device only)
Cable
Standard 2M straight
Input Voltage
5 VDC ± 10%
Power Consumption
0.9 watts
Operating Current
85 mA @ 5V ( Typical )
Standby Current
65 mA
EMC
CE & FCC DOC compliant, VCCI, BSMI
Safety
IEC 60825-1 Class 2
Operating Temperature
0 °C to 40 °C (32°F – 104°F)
Storage Temperature
-10°C to 70°C (14°F – 158°F)
Humidity
5% – 95% RH (non-condensing)
Light Level
Max. 4,500 Lux (fluorescence)
Drop Durability
Designed to withstand 1.2M drops
1D Barcode
UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen

Downloads

Technical Support
Data Sheet
Z-3191LE_DataSheet.pdf
Version: 2023/09/18
File size: 495 KB
2023-09-21
Buyer's Guide
Z-3191LE_BuyerGuide.pdf
Version: 2024/08/14
File size: 507 KB
2024-08-14
Quick Guide
Z-3191LE_QuickGuide.pdf
Version: 2018/01/13
File size: 576 KB
2018-01-30
Programming Guide
Z-3191LE_ProgrammingGuide.pdf
Version: 2018/10/15
File size: 2005 KB
2020-04-07
Service Guide
Z-3191LE_ServiceGuide.pdf
Version: 2013/06/04
File size: 194 KB
2023-08-10
DOF/WOF Drawings
Z-3191LE_DOFWOF.pdf
Version: 2012/11/29
File size: 310 KB
2018-01-30
Product Certificates
CE
Z-3191LE_CE.pdf
Version: 2012/11/02
File size: 87 KB
FCC
Z-3191LE_FCC.pdf
Version: 2012/11/02
File size: 123 KB
BSMI
Z-3191LE_BSMI.pdf
Version: 2012/11/23
File size: 214 KB
Software
Standard firmware
Z-3191LE standard firmware version 1.30, 11/18/2015
2018-01-30
Virtual COM Driver
Emulates COM port connection when the scanner is connected to PC via USB cable. This driver works on Intel 32 / 64 bit processor based machine with Windows XP, Windows 7, and Windows 8. For Windows 10 users, please use the native CDC driver included in the Windows 10.
2018-01-30
OPOS
OPOS driver
2018-03-02
