Z-3190BT

Linear Image Gun Type Wireless Handheld Scanner

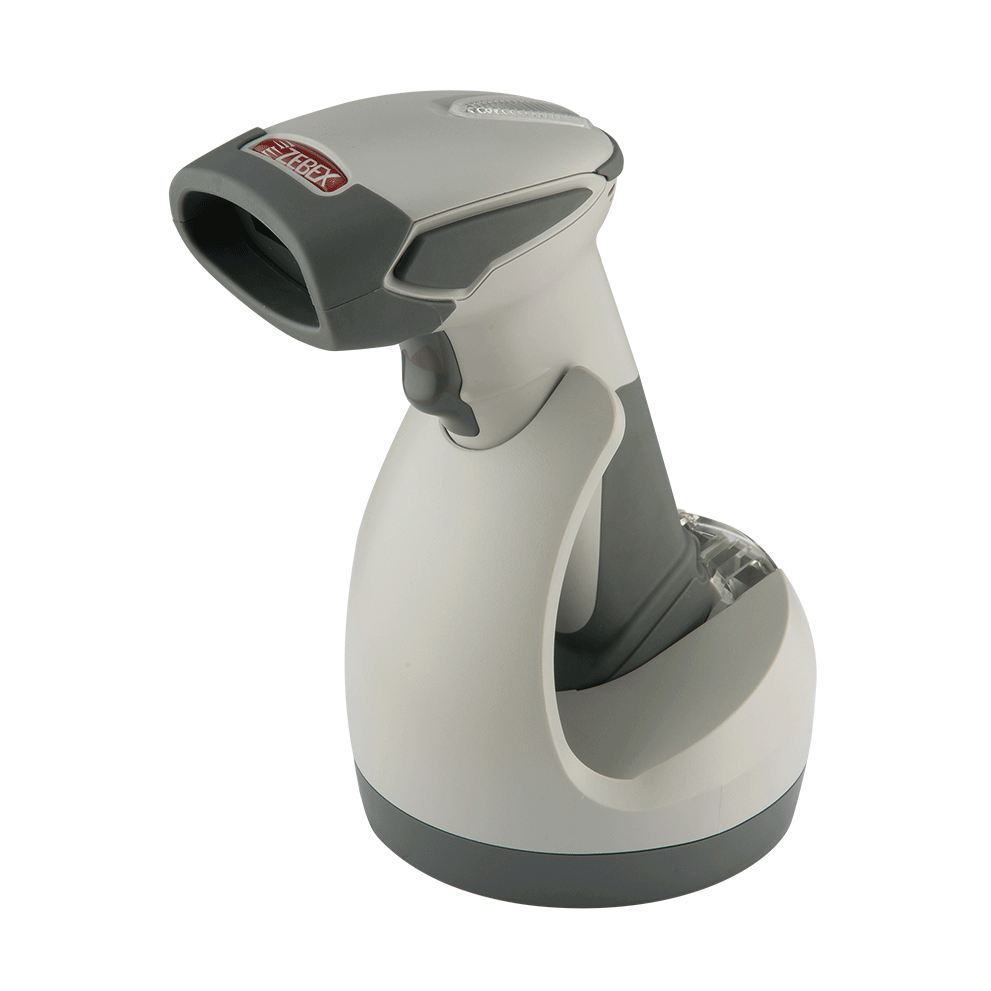

Z-3190BT Linear Image Gun Type Wireless Handheld Scanner
Z-3190BT Linear Image Gun Type Wireless Handheld Scanner
Z-3190BT Linear Image Gun Type Wireless Handheld Scanner
Z-3190BT Linear Image Gun Type Wireless Handheld Scanner
Z-3190BT Linear Image Gun Type Wireless Handheld Scanner
Z-3190BT has wireless connection ability at up to 100M work range.
It is able to communicate to devices like laptops and barcode printers, eliminating hazardous cables and providing walk-around freedom. This highly reliable scanner is ideal for daily retail industry, office environment as well as industrial sectors, the ultimate invention for users requiring competence, durability, and convenience.

• Proprietary Ultrascan decoding technology
• 32-bit micro processor unit
• GS1 DataBar decoding capability
• Strong gun-type design
• Flexible communication options
• Wireless freedom at 100M/75M working range
• Rugged gun-type design for tough working conditions and rough operations
• Smart charging to prolong battery life
• Captures barcodes on mobile phone, tablet, or computer screens

Specifications

OPERATIONAL

Light Source
617 nm visible red LED
Optical System
Linear CCD array
Image Sensor
2500 pixels CCD
Microprocessor
32-bit
Depth of Field
4 mil: 30 – 90 mm
5 mil: 30 – 130 mm
7.5 mil: 10 – 190 mm
10 mil: 10 – 220 mm
13 mil: 20 – 320 mm
20 mil: 10 – 360 mm
Note: DOF may vary depending on environment condition and barcode quality.
Min. Bar Width
3 mil
Scan Angle
42°
Pitch / Roll / Skew angle
±75° / ±25° / ±60°
Scan Rate
330 scans per second
Print Contrast
Min. 30% @ UPC/EAN 100%
Indicator
Beeper and LED
Programmable Operation
Beeper tone & volume
System Interface
Keyboard, RS-232, HID USB, USB Virtual COM,wand, OPOS, JPOS

PHYSICAL CHARACTERISTICS

Dimensions H x W x L
147.0 × 62.0 x 114.5 mm (device only)167.4 ×101.6 x 133.6 mm (with cradle)
Weight (g)
200 g (with battery)500 g (with cradle)
Cable
Standard 3M straight

RADIO COMMUNICATION

Frequency
2.4~2.48 GHz (ISM band)
Interface
Cradle host; SPP master; HID; slave
Working Range
Up to 100M with communication cradle (depends on operating environment)

POWER

Input Voltage
5 VDC ± 10%
Operating Current
Charging: 700 mA (external power);Non-charging: 70 mA
Main Battery
3.7V, 2,500 mAh, Li-ion battery
Recharging Time
Approximately 4.5 hours via cradle; 6 hours via USB cable
Number of Scan
Over 150, 000 scans at 1 scan per second per full charge
Battery Life
40 hours per full charge

REGULATORY

EMC
CE & FCC DOC compliant, VCCI, BSMI, UKCA
Radio
FCC Part 15C; CE EN 300 328; ARIB STD-T66 (Japan); NCC (Taiwan)
Safety
IEC 62471 Exempt

ENVIRONMENT & SAFETY

Operating Temperature
0 °C to 50 °C (32°F – 122°F)
Storage Temperature
-20°C to 60°C (-4°F – 140°F)
Humidity
5% – 95% RH (non-condensing)
Light Level
0-100,000 Lux (fluorescence)
Drop Durability
Designed to withstand 1.5M drops

DECODING CAPABILITY

1D Barcode
UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen
