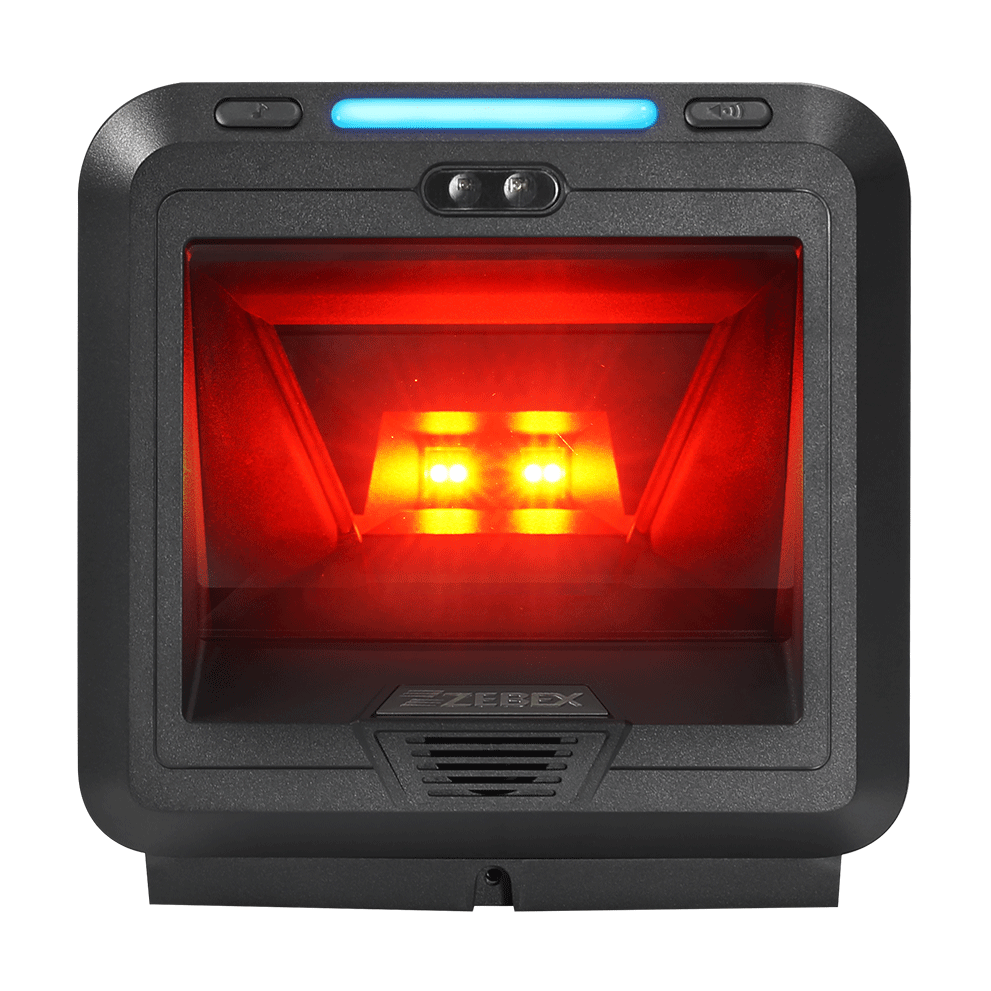

Z-8082

2D Image On-Counter Scanner

Z-8082 2D Image On-Counter Scanner
Z-8082 2D Image On-Counter Scanner
Z-8082 2D Image On-Counter Scanner
Z-8082 2D Image On-Counter Scanner
Z-8082 2D Image On-Counter Scanner
The Z-8082 on-counter scanner offers flexibility with 2D image reading.
The new imagine technology allows versatile functionality with both 1D and 2D barcodes that satisfy your needs on regular market labels and consumer 2D coupons.
Z-8082 not only provides efficiency with its instant decoding performance, it offers the convenience of wide scan zone and full-directional moving objects capture ability.
This powerful device is ready for all heavy-loading challenges in retails.

• High speed and reliable performance on all common 1D and 2D codes
• Offer convenience by its full-directional motion tolerance function and wide scan zone
• Aux port available for secondary scanner
• EAS supported for extended function
• VESA 100 compatible to satisfied your mounting demands

Specifications

Illumination Element
617 nm LED
Optical System
1280H x 960V pixels (1.2M)
Depth of Field
5 mil (Code39): 0 – 50 mm
13 mil (EAN13): 0 – 200 mm
Note: DOF may vary depending on environment condition and barcode quality.
Min. Bar Width
5 mil (Code 39)
Scan Angle
47.0° horizontal; 36.0° vertical
Print Contrast
30% @ UPC/EAN 100%
Indicator
Beeper (Buzzer), LED (Blue/ Red)
Programmable Operation
Beeper tone & volume
System Interface
RS-232, USB
Dimensions H x W x L
151.8 x 152.2 x 85.0 mm
Weight (g)
510 g
Cable
Standard 2M straight
Input Voltage
9 VDC ± 10%
Operating Current
250 mA typical
EMC
CE & FCC DOC compliant; VCCI; BSMI
Safety
IEC 62471 Exempt
Operating Temperature
0° C ~ 50° C (32°F – 122°F)
Storage Temperature
-40°C - 70°C (-4°F – 140°F)
Humidity
5% – 95% RH (non-condensing)
Drop Durability
Designed to withstand 1M drops
1D Barcode
UPC/ EAN (UPC-A/ UPC-E/ UPC-E1/ EAN-8/ JAN-8/ EAN-13/ JAN-13/ ISBN/ ISSN), Code 39 (Standard, Full ASCII, Trioptic), Code 32, Code 128, Code 93, Codabar, 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA, Matrix 2 of 5, Code 11), MSI Plessey, GS1 DataBar (Omnidirectional, Truncated, Limited, Expanded)
2D Barcode
PDF417 (Standard, Macro), Micro PDF417 (Standard, Macro), Composite Codes (CC-A,CC-B, CC-C), GS1 DataBar Stacked, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked OmnidirectionalQR Code (Standard, Inverse, Micro), DataMatrix (Standard, Inverse), Aztec (Standard, Inverse), MaxiCode
