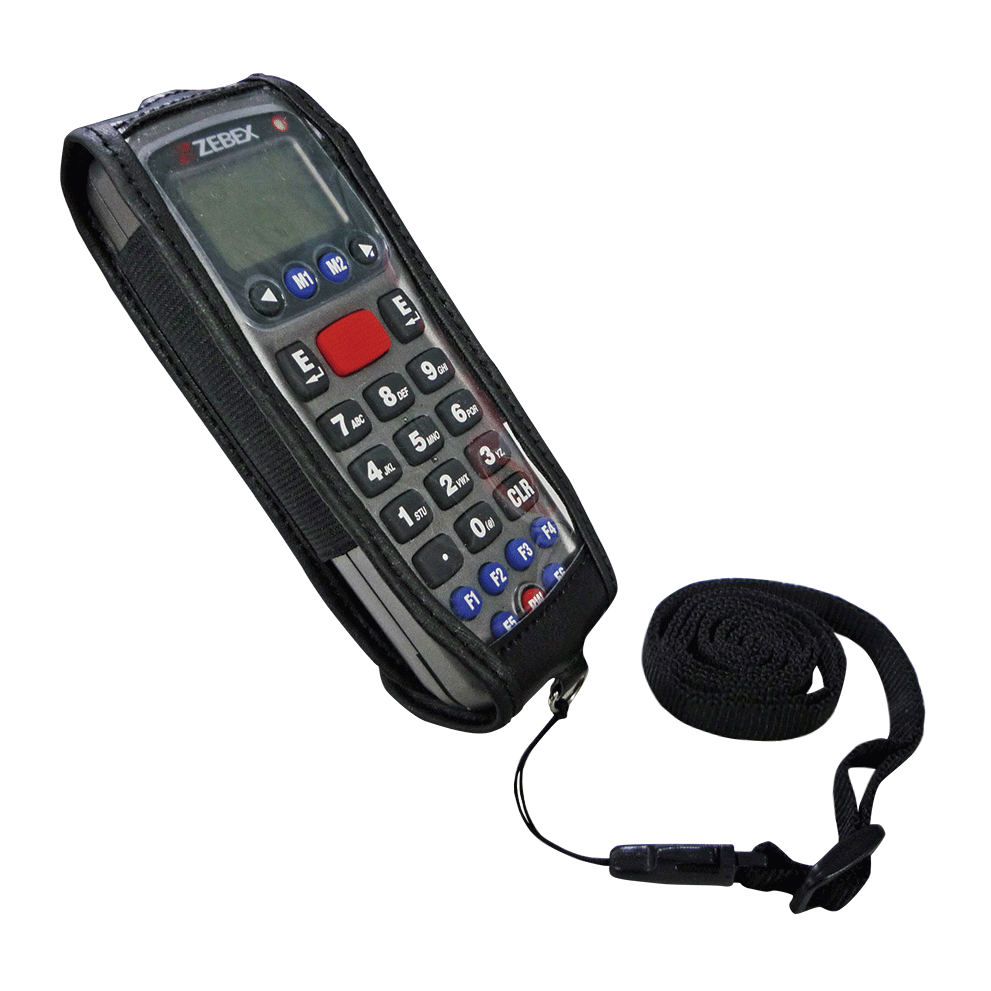

Z-2121

Advanced Portable Data Collector

Z-2121 Advanced Portable Data Collector
Z-2121 Advanced Portable Data Collector
Z-2121 Advanced Portable Data Collector
Z-2121 Advanced Portable Data Collector
Z-2121 Advanced Portable Data Collector
Great stride have been made to boast a higher performance, an enlarged memory capacity, Bluetooth wireless connection, a vibrator, and rechargeable via USB port.
This is Z-2121 for all your data collecting needs.

• 32-bit microprocessor for fastest operation possible
• FSTN, 96×49 dots graphic LCD with back light
• Extendable battery life of up to 100 working hours of scanning
• Integrated with advanced functions
• Convenient one-handed operation
• PC-based task generator for customized applications

Specifications

Light Source
650 nm visible laser diode (VLD)
Depth of Field
20 – 500 mm
Scan Rate
100 scans per second
Print Contrast
30% @ UPC/EAN 100%
CPU
32-bit microprocessor
Memory
2MB RAM
Display
FSTN, 96 × 49 dots (6 × 16 characters)graphic LCD, with back light
Scanner
1D laser engine
Keypad & Button
Total 26 keys for alpha/numeric input and system control
Software & Development
(a) Supports the WinTaskGen software (application generator); (b) SDK to support GNU C (Freeware) Compiler
Dimensions H x W x L
134.9 × 48.0 × 23.6 mm
Weight (g)
125 g (battery included)
Main Battery
830 mAh, 3.7V Li-ion rechargeable battery
Backup Battery
25 mAh, 3.0V Lithium rechargeable battery
Battery Life
80 hours at 12 scans per minute
EMC
CE & FCC Part 15B, RF(CE, FCC)
Operating Temperature
0°C – 50°C (32°F – 122°F)
Storage Temperature
-10°C – 60°C (14°F – 140°F)
Humidity
5% – 95% RH (non condensing)
Light Level
Max. 4, 500 Lux
Drop Durability
Designed to withstand 1M drops
