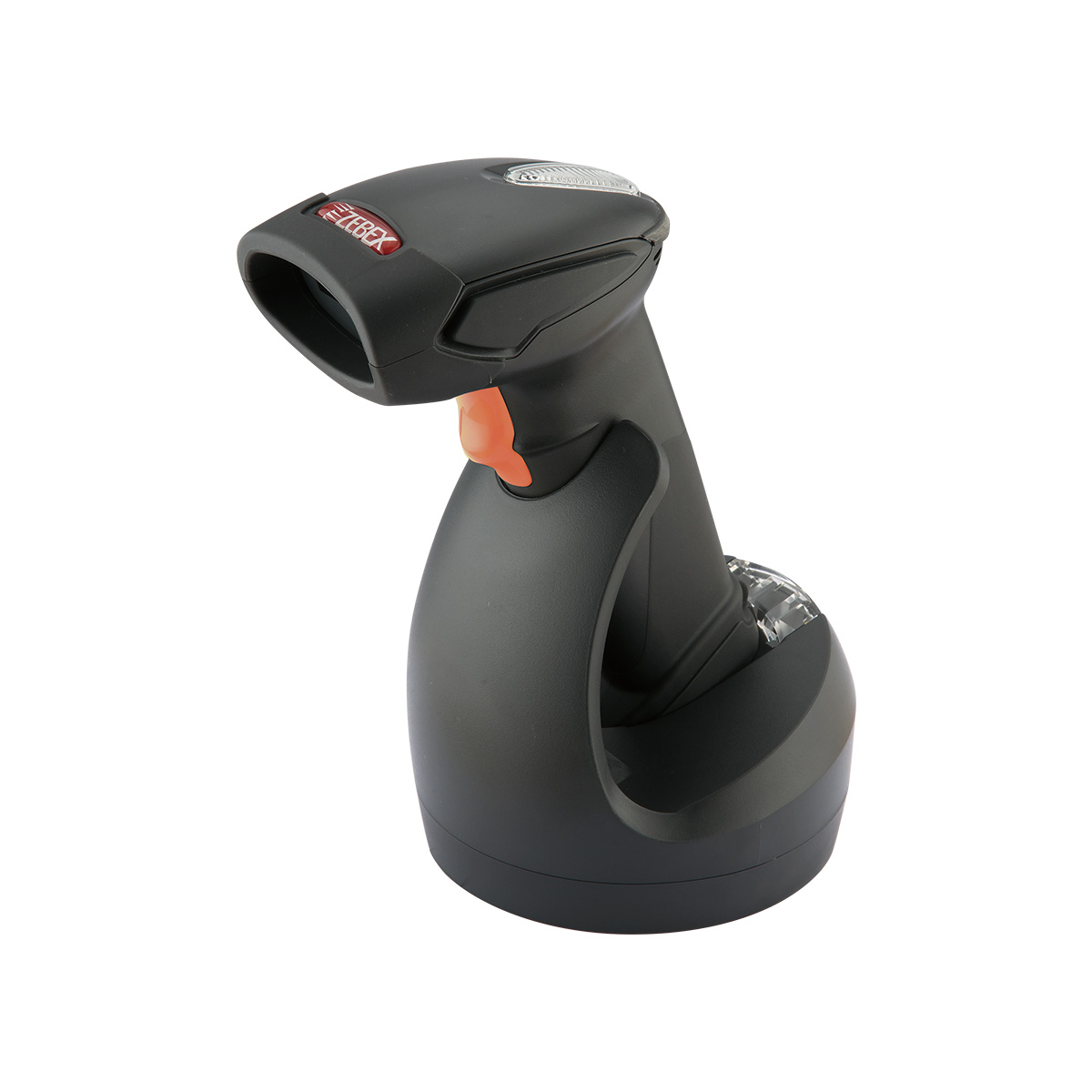

The Z-3192BT Plus is a handheld gun-type wireless 2D image reader designed for professional performance. It features a high-capacity lithium-ion rechargeable battery for extended use and numerous recharge cycles. Users benefit from LED indications and a programmable beeper for intuitive feedback, along with flexible data connectivity options. Its lightweight design ensures easy handling, while its rugged build provides durability. The scanner excels at reading barcodes from various devices, including mobile phones and tablets, and offers wireless scanning within a 100-meter range. With advanced decoding capabilities for popular 1D and 2D barcodes, the Z-3192BT Plus is ideal for manufacturing and logistics, enhancing efficiency and productivity.
• Wireless freedom at 100M working range
• Data connection flexibilities
• Flashing LED indication and programmable beeper
• Light-weighted and gun-type shape for easy handy operation
• Decode most 1D & 2D barcodes
• Rugged gun-type design for tough working conditions
• Smart charging to prolong battery life
• Captures barcodes on mobile phone, tablet, or computer screens
| Aiming Element | ||
|---|---|---|
| 617nm visible LED | ||
| Illumination Element | ||
| White LED | ||
| Optical System | ||
| CMOS | ||
| Image Sensor | ||
| 1280 x 800 | ||
| Depth of Field | ||
| Code39 ( 5 mil ) : 60 – 160 mm EAN13 ( 13miil ) : 40 – 270 mm | ||
| Min. Bar Width | ||
| 4mil @ PCS = 90% ( code 39 ) | ||
| Field of View | ||
| 38.6° horizontal; 24.9° vertical | ||
| Pitch / Roll / Skew angle | ||
| ±120° / 360° / ±120° | ||
| Sensitivity | ||
| 360° | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Indicator | ||
| Beeper and LED | ||
| Programmable Operation | ||
| Beeper tone & volume | ||
| System Interface | ||
| RS-232, HID USB, USB Virtual COM | ||
| Dimensions H x W x L | ||
|---|---|---|
| 147.0 x 62.0 x 114.5 mm (device only) | ||
| Weight (g) | ||
| 197.5 g | ||
| Cable | ||
| Standard 2M straight | ||
| Input Voltage | ||
|---|---|---|
| 5 VDC ±10% | ||
| Operating Current | ||
| Charging : 500 mA ( external power ); Non-charging : 70 mA | ||

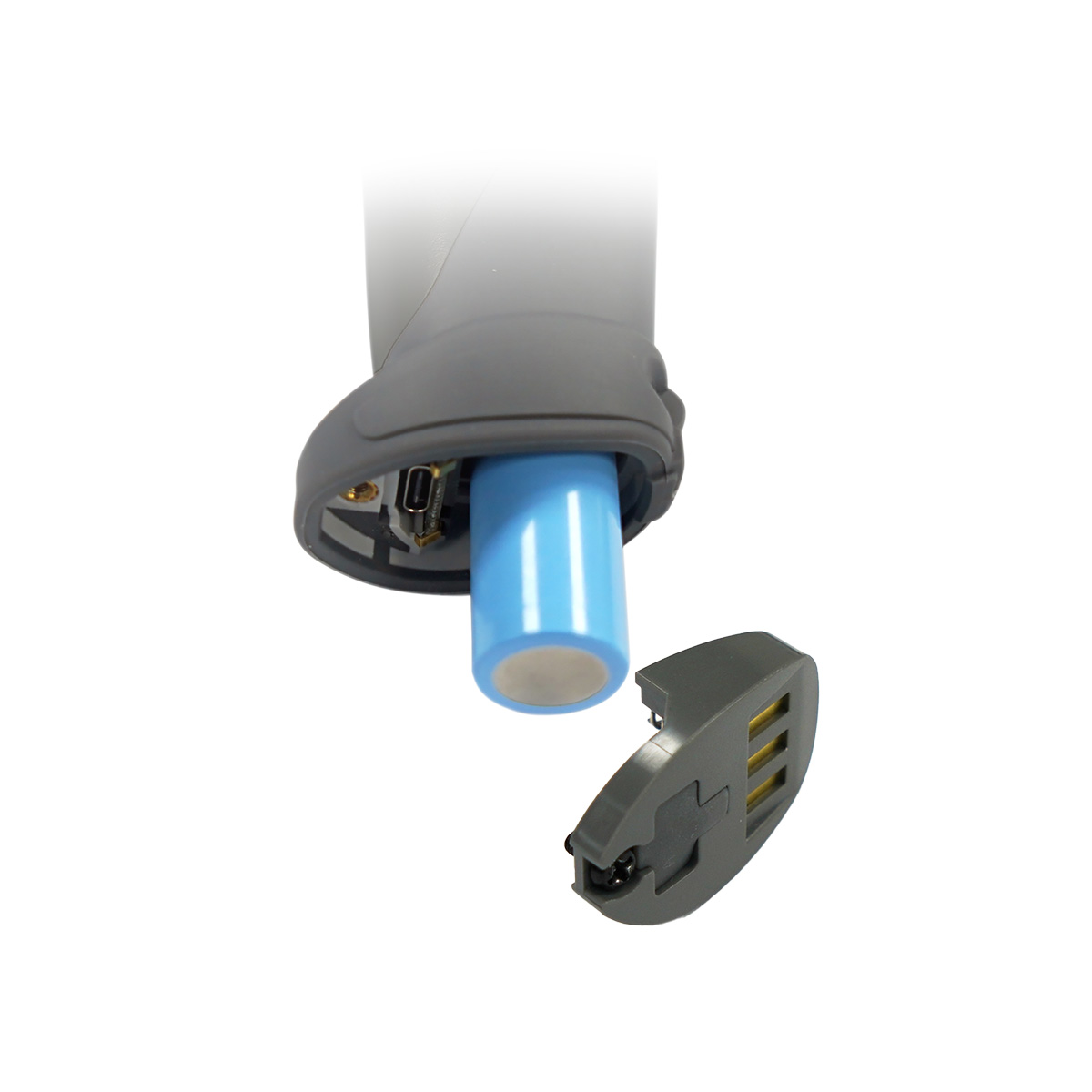

| Main Battery | ||
| 3.7V, 3,200 mAh, Li-ion battery (optional) | ||
| Recharging Time | ||
| Approximately 5 hours via cradle; 7 hours via USB cable | ||
| Number of Scan | ||
| Over 300,000 scans at 6 scan per second per full charge | ||
| LED Safety | ||
|---|---|---|
| IEC 62471 | ||
| EMC | ||
| CE & FCC DOC compliant, VCCI, BSMI | ||
| Radio | ||
| FCC Part 15C; CE EN 300 328; ARIB STD-T66 ( Japan ) ; NCC ( Taiwan ) | ||
| Operating Temperature | ||
|---|---|---|
| 0°C – 50°C (32°F – 122°F) | ||
| Storage Temperature | ||
| -20°C – 60°C (14°F – 140°F) | ||
| Humidity | ||
| 5% – 90% RH (non-condensing) | ||
| Light Level | ||
| Max. 100,000 Lux (any light condition) | ||
| Drop Durability | ||
| Designed to withstand 1.2M drops | ||
| 1D Barcode | ||
|---|---|---|
| UPC / EAN ( UPCA / UPCE / EAN-8 / EAN-13, ISBN ( Bookland ), Code 39 , Code 32 ( Italian Pharmacode ), Code 128, Code 93, Codabar, Interleaved 2 of 5,Standard 2 of 5,lndustrial 2 of 5, Matrix 2 of 5 ( Japannese ), Code 11, Telepen, Pharmacode, Chinese post code, MSI Plessey, GS1 DataBar ( Limited, Truncated, Stacked, Stacked Stacked, Expanded, Expanded Stacked ) | ||
| 2D Barcode | ||
| QR Code, Micro QR Code DataMatrix MaxiCode, Aztec, PDF417, MicroPDF417, PostNet, PLANET, Australia, Royal Post, CODABLOCF ( CCA, CCB, CCC ) | ||
