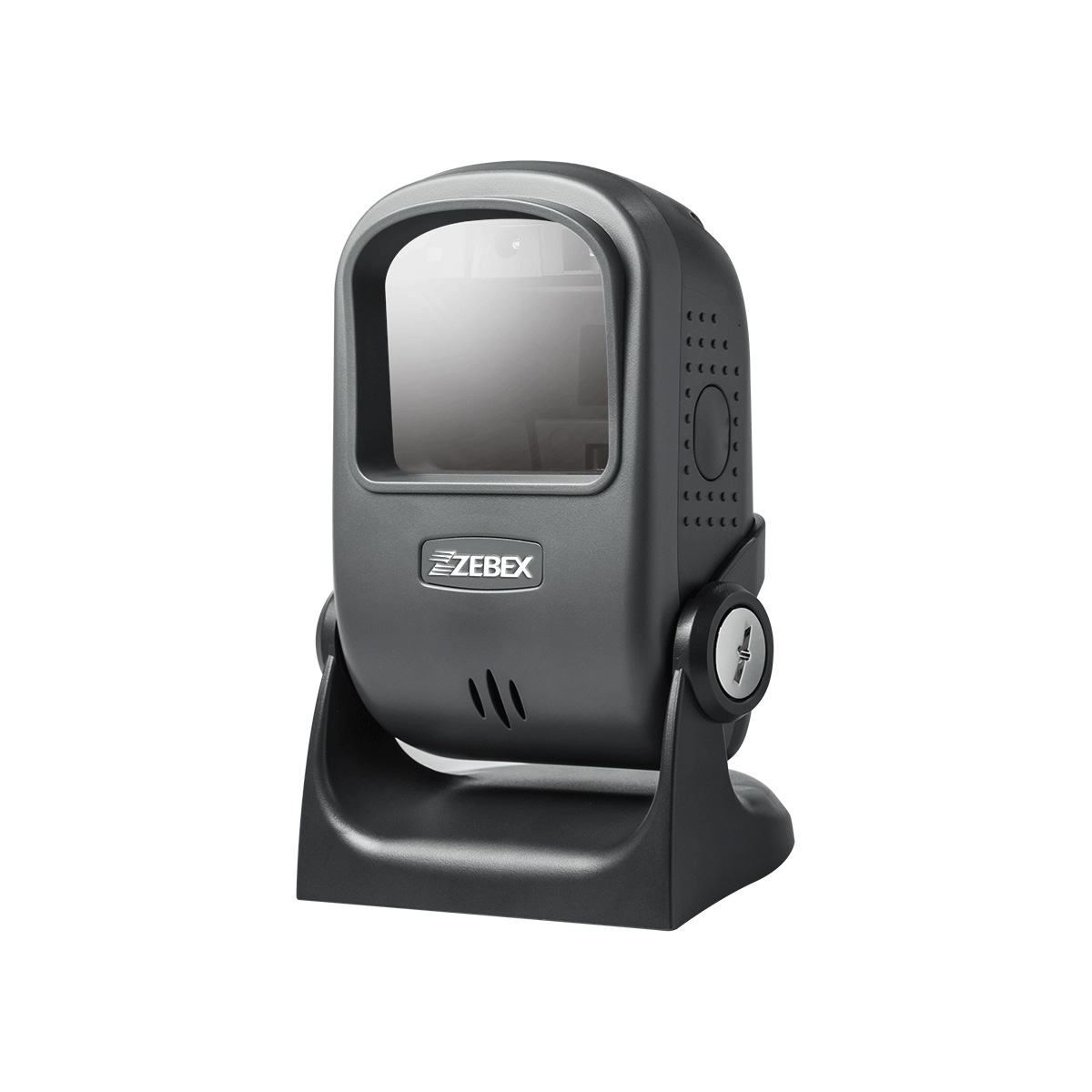

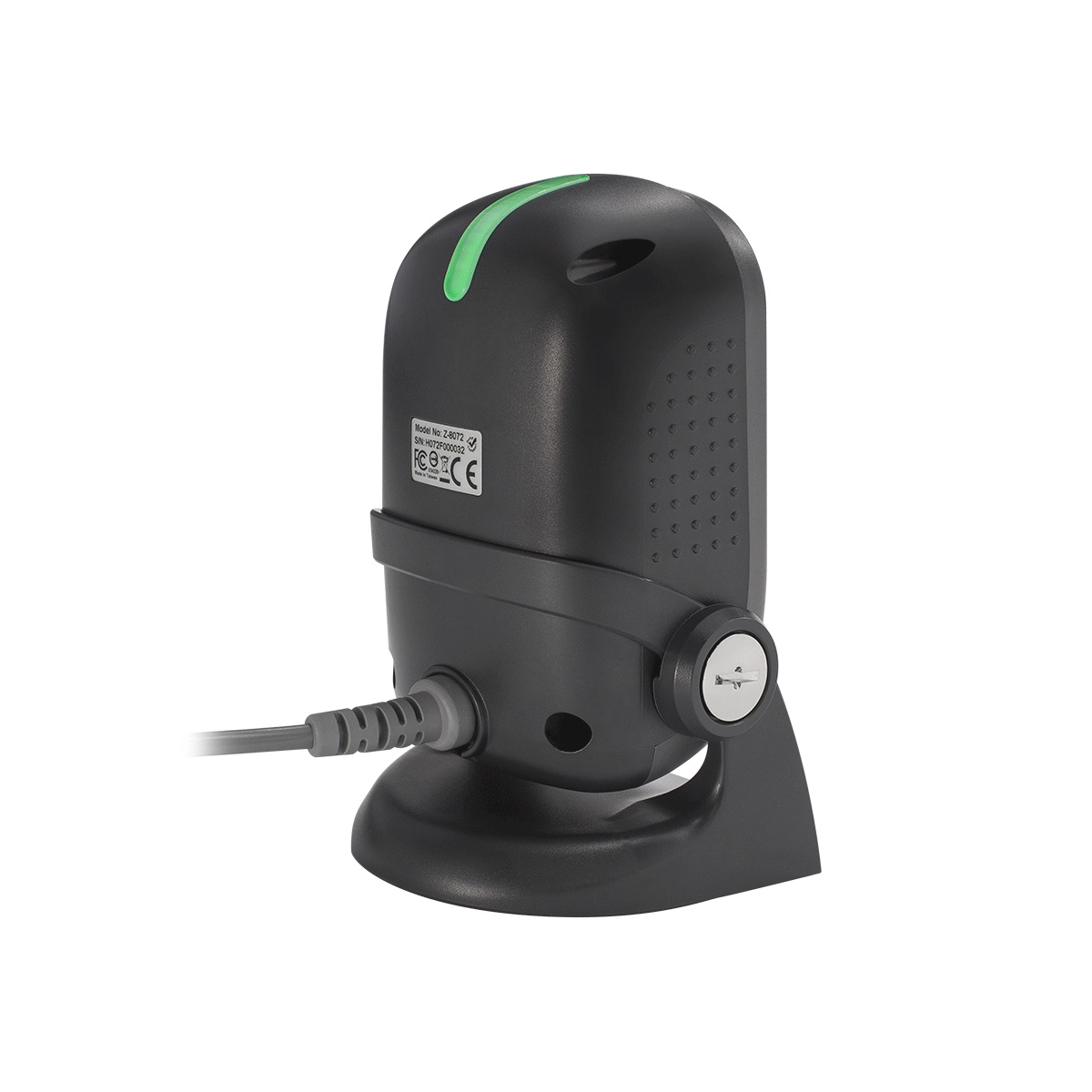

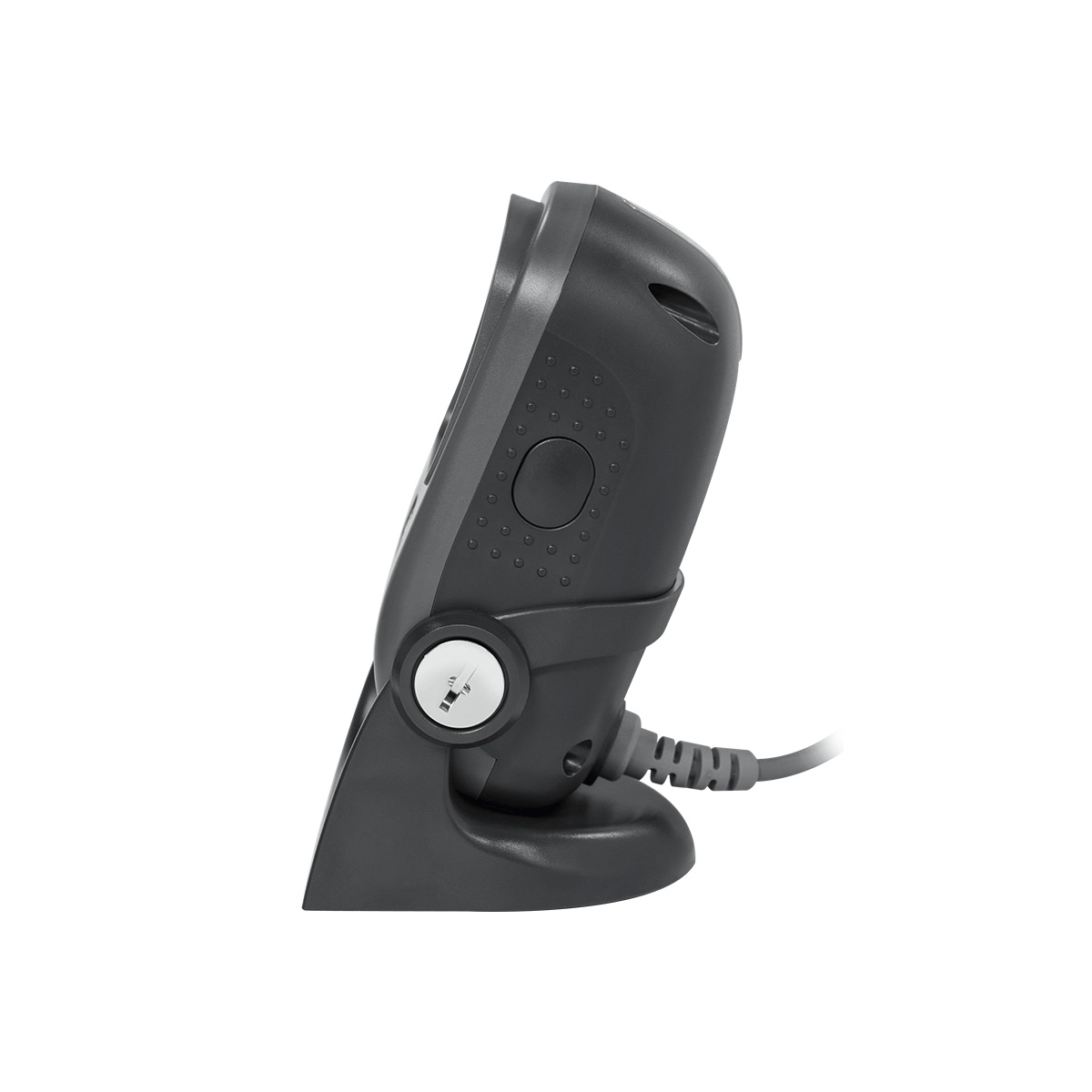

Z-8072 Ultra

2D Image Hands-Free Scanner

Bringing remarkable attributes and heightened capabilities, the Z-8072 Ultra 2D Image Hands-Free Scanner emerges as a paragon of excellence. Its commanding 2D Scanner, seamlessly integrated within a compact and ergonomically designed form, empowers users to effortlessly achieve pinpoint accuracy, regardless of spatial limitations. Notably, its prowess extends to effortlessly decoding barcodes from smartphone screens, even when immersed in challenging low backlight conditions, making it the definitive answer for environments where space constraints are a prevailing consideration. This scanner stands as a testament to cutting-edge innovation, setting a new standard for efficiency in constrained spaces.
It is the perfect solution for any space-constrained environments.


• Enhanced to quickly scan a barcode at low-brightness on a smartphone screen
• Enhanced scanning on reflective surfaces
• Enhanced scanning sensitivity, range, and speed
• Enhanced readability in special environments
• Easy to use; setting change not necessary for different applications
• Healthcare label compliance: Supports GS1 and FMD format

Specification Description

Aiming Element
617 nm LED
Illumination Element
617 nm LED
Optical System
CMOS
Image Sensor
1280 x 800
Depth of Field
Code39 (3 mil): 0 – 30 mm Code39 (5 mil): 0 – 50 mm EAN13 (13 mil): 0 – 210 mm Note: DOF may vary depending on environment condition and barcode quality.
Min. Bar Width
6.8 mil (PDF 417), 3 mil (Code 39)
Scan Angle
44.4° horizontal; 29.1° vertical
Print Contrast
30% @ UPC/EAN 100%
Indicator
Color LED
Programmable Operation
Scan Mode, Beeper tone

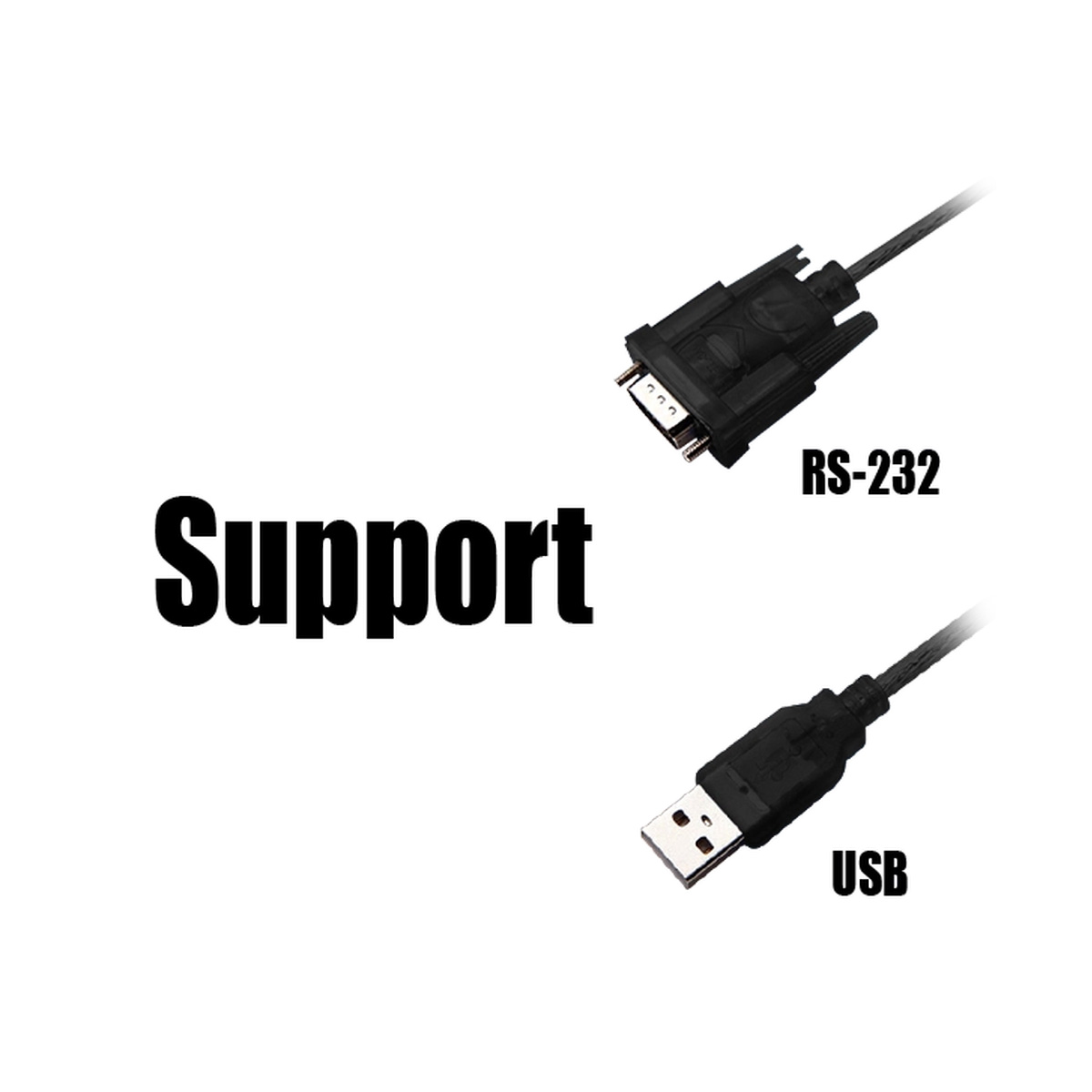

System Interface
RS-232, USB

Dimensions H x W x L
145 x 80.2 x 97.0 mm
Weight (g)
250 g

Input Voltage
5 VDC ± 10%
Operating Current
220 mA @ 5V ( Typical )

EMC
CE, FCC, VCCI, BSMI
Safety
IEC 62471 Exempt

Operating Temperature
0° C ~ 50° C (32°F – 122°F)
Storage Temperature
-40°C - 70°C (-40°F – 158°F)
Humidity
5% – 95% RH (non-condensing)
Drop Durability
Designed to withstand 1M drops

1D Barcode
UPC/EAN [UPCA/UPCE/ EAN-8/ EAN-13, ISBN (Bookland), ISSN], Code 39 (Standard, Full ASCII, Trioptic, Code 32 (Italian Pharmacode), Code 128, Code 93, Codabar, 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA, Matrix 2 of 5, Code11), MSI Plessey, GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked)
2D Barcode
PDF417, MicroPDF417, Composite Codes (CC-A, CC-B, CC-C) , Aztec (Standard, Inverse), Maxicode, Data Matrix/ ECC 200 (Standard, Inverse), QR Code (Standard, Inverse, Micro)
