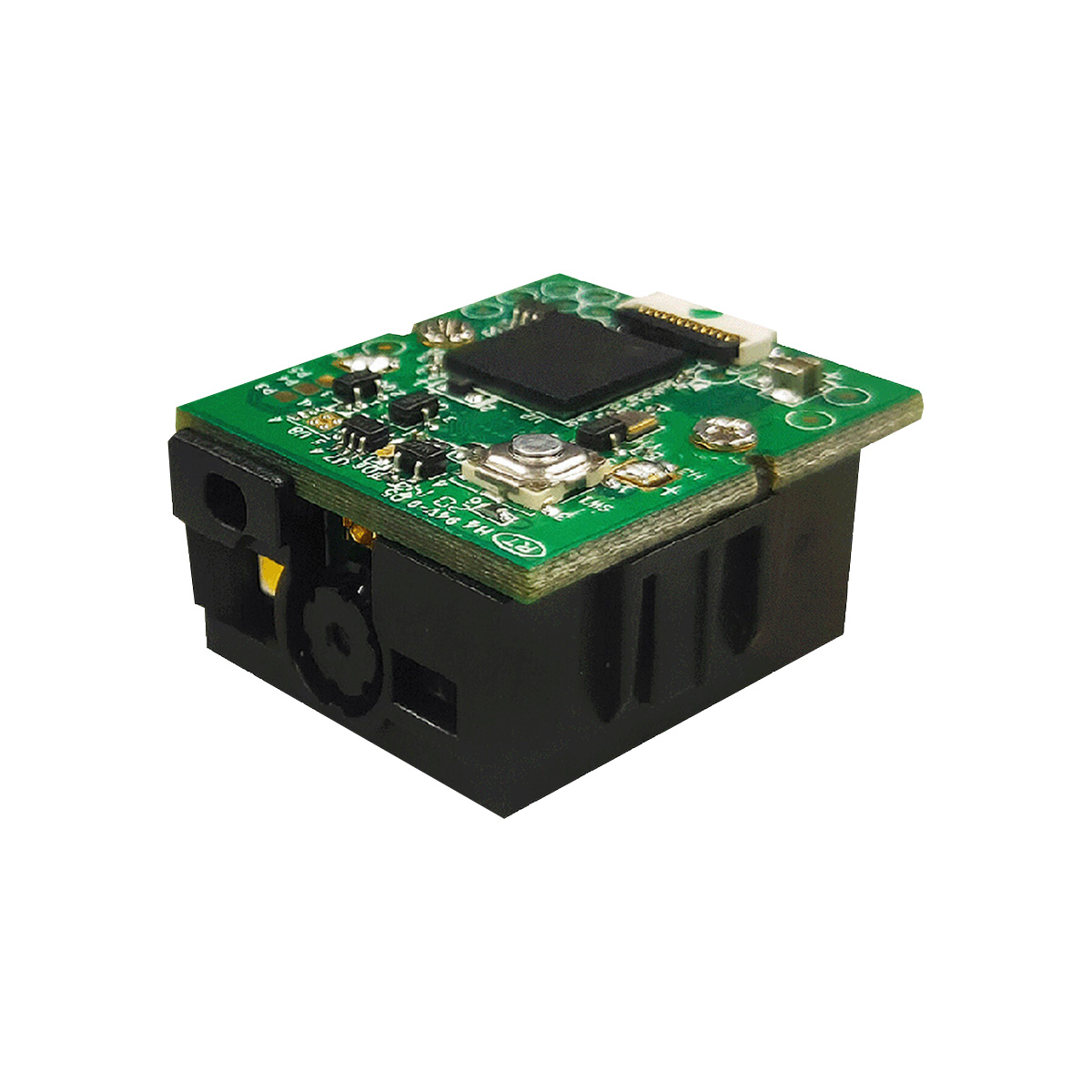

Z-5112 GT是一款功能強大的二維條碼掃描引擎，具有高速解碼能力，可以精準讀取多樣一維及二維條碼。

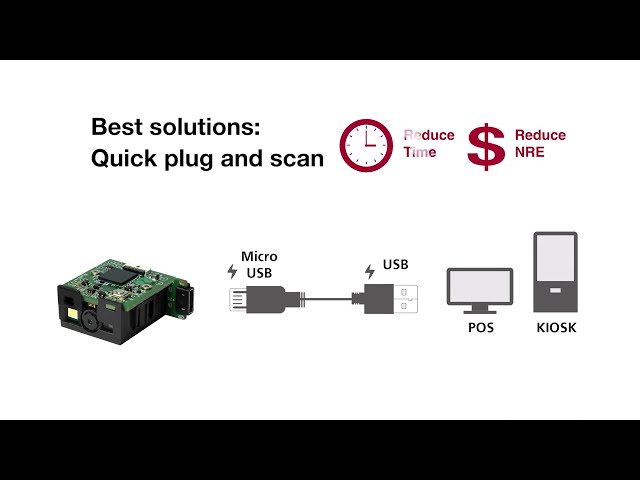

它還支援包含USB在內，大多數硬體介面的串接口，並可隨插即用。
Z-5112 GT迷你易攜式的尺寸，可以毫不費力地設計到大多數有空間限制的產品中，包括行動式電腦、自動販售亭、彩票機等，Z-5112 GT是可用於任何行業的完美解決方案。
•易於整合
•無需額外的解碼板
•支援多樣性通訊接口
•出色的一維和二維條碼解碼能力
•可讀取手機、平板電腦或電腦螢幕上的條碼
•醫療保健標籤讀取：支援GS1及FMD
| Illumination Element | ||
|---|---|---|
| White LED | ||
| Optical System | ||
| CMOS | ||
| Image Sensor | ||
| 1280 x 800 | ||
| Depth of Field | ||
| Code39 (5 mil) : 60 - 160 mm EAN 13 (13 mil) : 40 - 280 mm (Note : DOF may vary depending on environment condition and barcode quality.) | ||
| Min. Bar Width | ||
| 4 mils (Code39) | ||
| Scan Angle | ||
| 38.6° H x 24.9° V | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Indicator | ||
| Blue LED | ||
| Programmable Operation | ||
| Scan mode, Beeper tone | ||
| System Interface | ||
| Z-5112GT : ( Interface : 12 pin ZIF) RS-232 (TTL level), USB HID, USB Virtual com, OPOS, JPOS Z-5112GT (U) : (Interface : Micro USB) USB HID, USB Virtual com, OPOS, JPOS | ||
| Dimensions H x W x L | ||
|---|---|---|

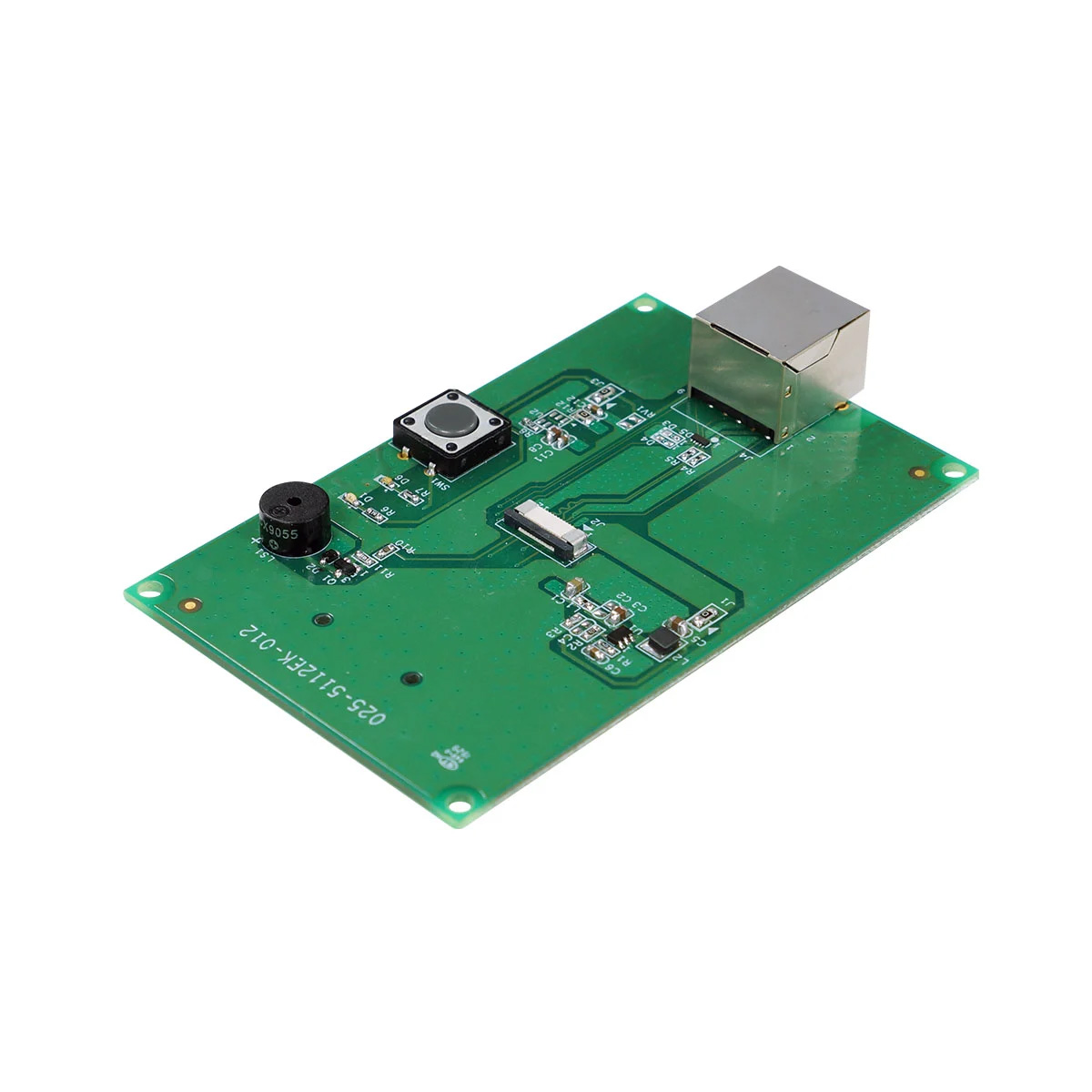

| 24(W) x 13.3(H) x 27(D) mm 30(W) x 13.3(H) x 27(D) mm (with I/O board) | ||
| Weight (g) | ||
| 6g / 8.5g (with I/O board) | ||
| Input Voltage | ||
|---|---|---|
| 3.3 VDC / 5 VDC (with I/O board) | ||
| Operating Current | ||
| 180 mA @ 3.3V ( Typical ) | ||
| EMC | ||
|---|---|---|
| CE, FCC, VCCI, BSMI, EN55024, EN55032, UKCA | ||
| Safety | ||
| IEC 62471 Exempt | ||
| Operating Temperature | ||
|---|---|---|
| -10°C – 50°C (14°F – 122°F) | ||
| Storage Temperature | ||
| -40°C - 70°C (-40°F - 158°F) | ||
| Humidity | ||
| 5%~95% RH (non condensing) | ||
| Shock | ||
| 3000g/ 0.3ms/ 6 faces | ||
| Vibration | ||
| 4.45 grms, 20-2000Hz, 3 axes | ||
| 1D Barcode | ||
|---|---|---|
| UPC/EAN (UPCA/UPCE/ EAN-8/ EAN-13, ISBN (Bookland),ISSN), Code 39 (Standard, Full ASCII, Trioptic, Code 32(Italian Pharmacode), Code 128, Code 93, Codabar, 2 of 5(Interleaved 2 of 5, Discrete 2 of 5, IATA, Chinese 2 of 5,Matrix 2 of 5, Code 11), MSI Plessey, GS1 DataBar(Omnidirectional, Truncated, Stacked, Stacked Omnidirectional,Limited, Expanded, Expanded Stacked) | ||
| 2D Barcode | ||
| PDF417, MicroPDF417, Aztec (Standard, Inverse), Maxicode,Data Matrix/ECC 200 (Standard, Inverse), QR Code(Standard, Inverse, Micro)CODABLOCK FComposite Codes (CC-A, CC-B, CC-C) | ||
