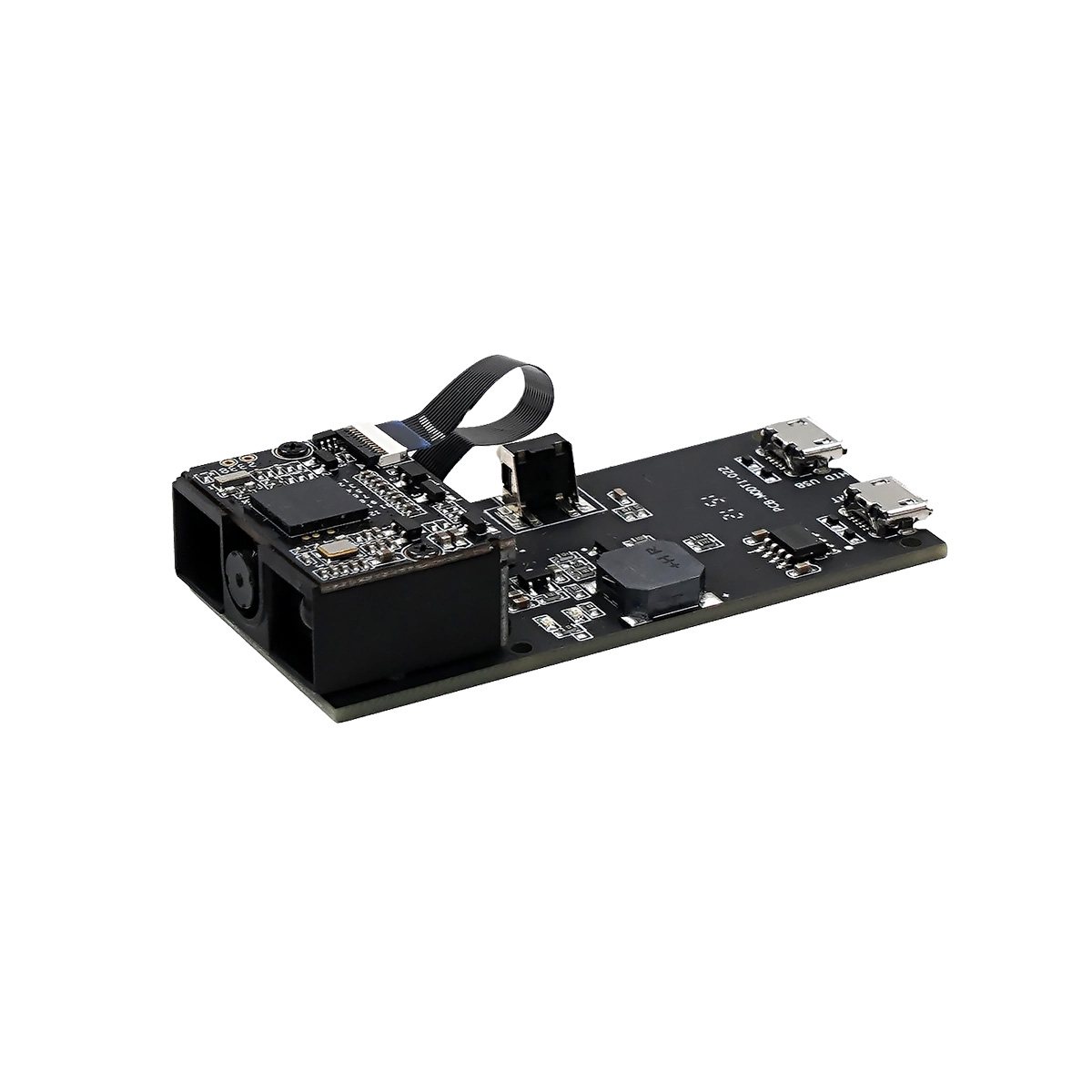

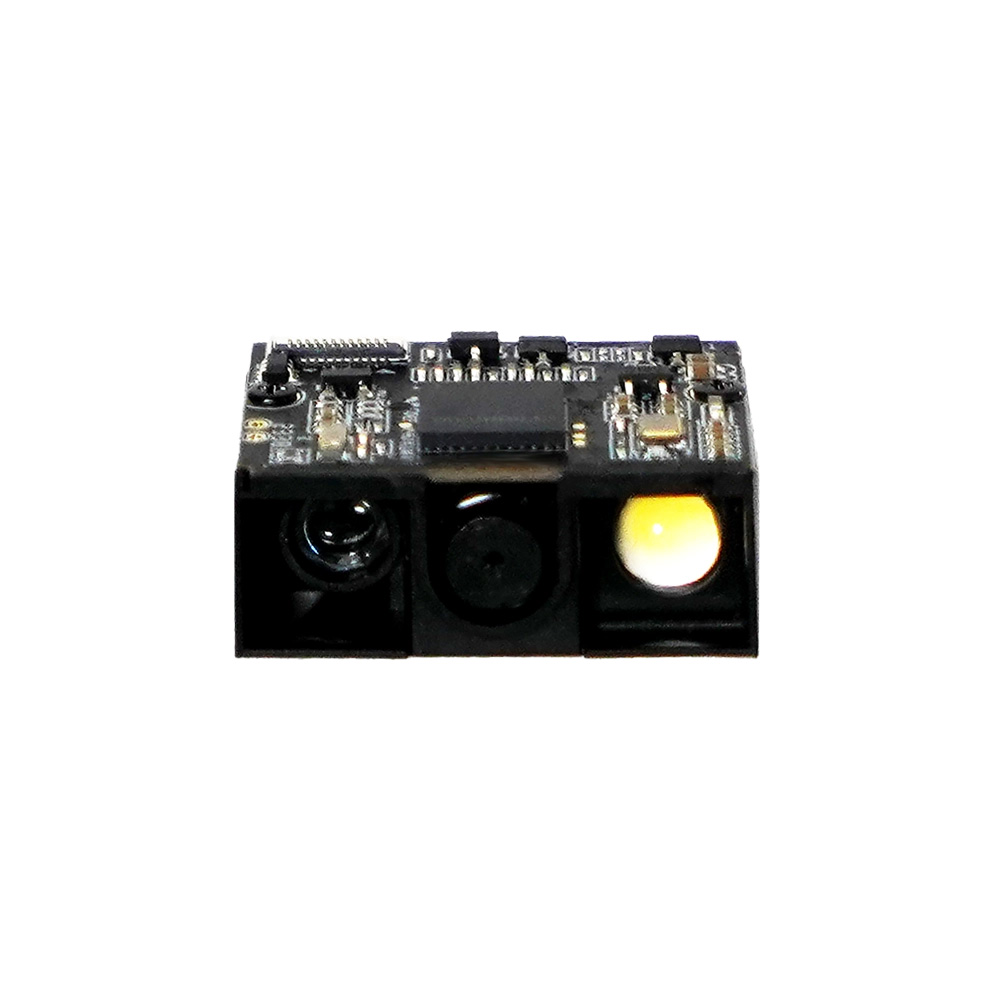

Z-5212 Plus 經過專業設計，超越預期，超越了單純的解決方案的角色；它改變了遊戲規則，釋放出卓越的掃描速度和經濟高效的性能。從解碼複雜的 Maxicode 到難以捉摸的 Dotcode，這款最先進的設備可以輕鬆處理各種條碼。經過精密設計，可實現無縫集成，其精心配置的引腳可輕鬆與所有主要品牌對齊，確保通用相容性。 Z-5212 Plus 保證了最佳效能和流暢、直覺的設定流程，重新定義了條碼掃描的卓越性，
樹立了效率和便利性的新標準。
• 無需單獨的解碼器板
• 靈活的介面通信
• 出色的一維和二維掃描性能
• 釋放負擔能力
• 簡化集成
• 小巧效率
• 螢幕就緒掃描
| Aiming Element | ||
|---|---|---|
| 617 nm LED | ||
| Illumination Element | ||
| White LED | ||
| Optical System | ||
| CMOS | ||
| Image Sensor | ||
| 1280 × 800 | ||
| Depth of Field | ||
| Code39 ( 4 mil ) : 50 - 130 mm Code39 ( 5 mil ) : 45 - 160 mm EAN 13 ( 13 mil ) : 55 - 300 mm QR Code ( 7 mil ): 50 - 125 mm Data Matrix ( 7 mil ): 40 - 130 mm (Note: DOF may vary depending on environment condition and barcode quality.) | ||
| Min. Bar Width | ||
| 4 mils (Code39) | ||
| Scan Angle | ||
| 46° horizontal, 29° vertical | ||
| Pitch / Roll / Skew angle | ||
| ±60° / 360° / ±60° | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Indicator | ||
| Decode LED output signal | ||
| Programmable Operation | ||

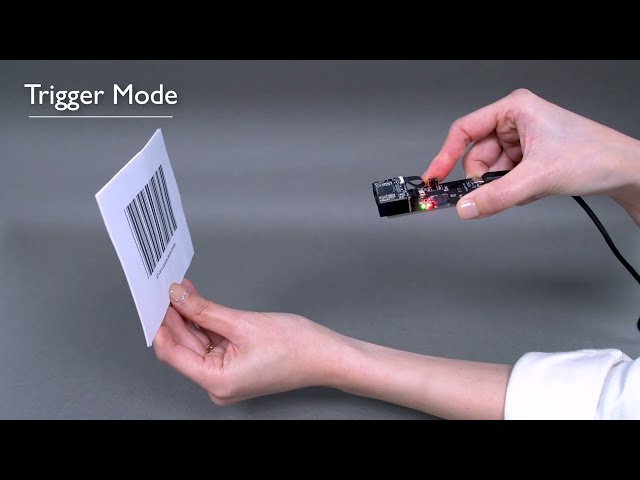

| Scan mode, Beeper output signal | ||
| System Interface | ||
| RS-232(TTL level)HID, USB, USB Virtual com | ||
| Connector | ||
| 12 pin ZIF connector | ||
| Dimensions H x W x L | ||
|---|---|---|
| 28.5 ( W ) x 12.0 ( H ) x 20.5 ( D ) mm | ||
| Weight (g) | ||
| 6.3 g | ||
| Input Voltage | ||
|---|---|---|
| 3.3 VDC | ||
| Operating Current | ||
| 100 mA ±5%@ 3.3V ( Typical ) | ||
| Standby Current | ||
| 40 mA ±5% | ||
| EMC | ||
|---|---|---|
| CE & FCC DOC compliance, VCCI, BSMI, UKCA | ||
| Safety | ||
| IEC 62471 | ||
| Operating Temperature | ||
|---|---|---|
| -20°C - 55°C | ||
| Storage Temperature | ||
| -40°C - 70°C | ||
| Humidity | ||
| 5%~95% RH (non condensing) | ||
| Light Level | ||
| 0 to 100,000 lux | ||
| 1D Barcode | ||
|---|---|---|
| UPC/EAN (UPCA/UPCE/ EAN-8/ EAN-13), Code 128, Code 93, Code 39, Code 32, Code 11, Codabar, Plessey, MSI, 2 of 5 (Interleaved, IATA, Matrix, Straight), Pharmacode, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited | ||
| 2D Barcode | ||
| PDF417, Micro PDF417, Data Matrix, QR Code (Standard, Micro), Aztec, MaxiCode, DotCode | ||
